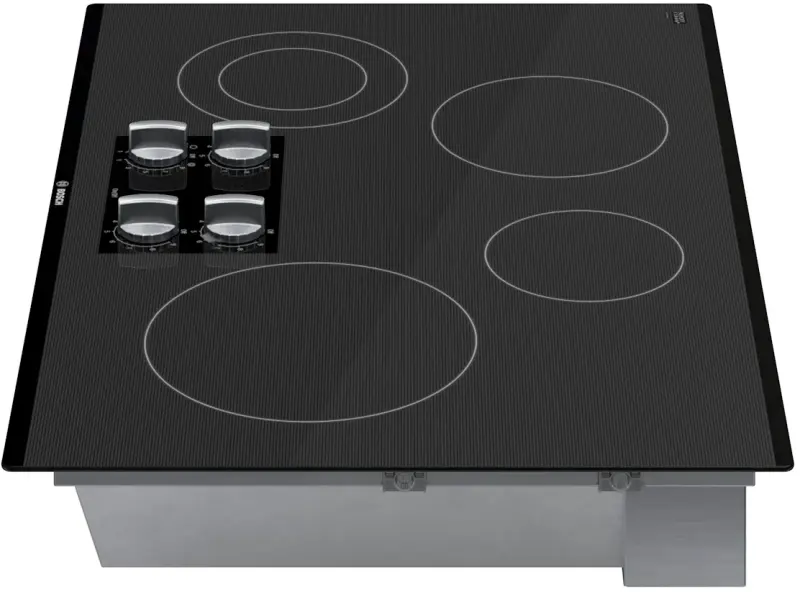

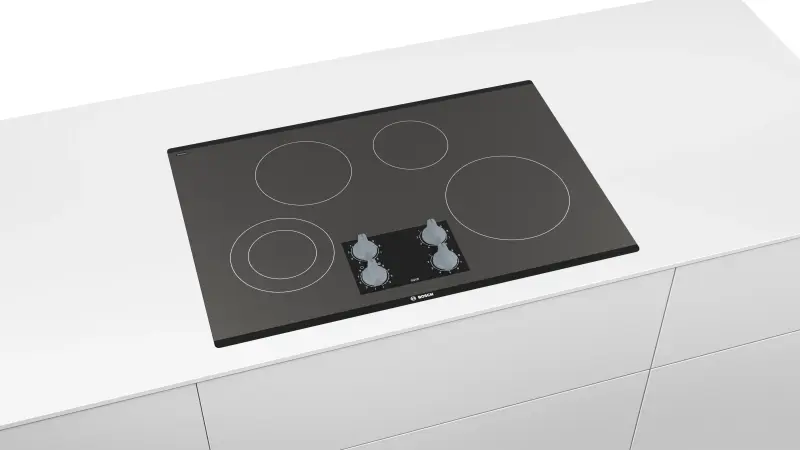

Bosch 500 Series, 30" KNOB CNT, 4 ELEMENT, ELEC. C-TOP BLACK

Bosch500 Series, 30" Knob Cnt, 4 Element, Elec. C-Top Black

Model No: NEM5066UC

Features:
  • Precise Temperature Control for Better Cooking Results
  • Ceramic-Glass Surface Makes Cooking and Cleaning Especially Easy
  • Residual Heat Indicator - Warns if Cooktop is Warm or Hot
  • Push-to-Turn Control Knobs
  • Dual Element Offers the Capability to use Multiple Pan Sizes

Product Inquiry Form

All fields marked * are required.

Inquire about: Bosch 500 Series, 30" KNOB CNT, 4 ELEMENT, ELEC. C-TOP BLACK
Required Information



Optional information





Simple and Sleek, the Modern European Designed Electric Cooktop is Easy to Use and Keep Clean

Simple and Sleek, the Modern European Designed Electric Cooktop is Easy to Use and Keep Clean

Simple and Sleek, the Modern European Designed Electric Cooktop is Easy to Use and Keep Clean

  • Precise Temperature Control for Better Cooking Results
  • Ceramic-Glass Surface Makes Cooking and Cleaning Especially Easy
  • Residual Heat Indicator - Warns if Cooktop is Warm or Hot
  • Push-to-Turn Control Knobs
  • Dual Element Offers the Capability to use Multiple Pan Sizes
  • Technical Specifications
    General
    Energy source Electric
    Type of control Fixed, front, Push-to-turn, Sword knobs
    Construction type
    Color of surface Black
    Construction type Built-in
    Design - line Frameless
    Number of electric elements 0
    Number of electric cooking zones 4
    Type of frame Frameless
    Number of gas burners 0
    Number of halogen elements 0
    Installation Type Built-in
    Total number of cooktop burners 4
    Number of radiant elements 4
    Number of electric warming zones 0
    Size and weight
    Overall appliance dimensions (HxWxD) (in) 1/4" + 4" x 31" x 21 1/4"
    Net weight (lbs) 25 lbs

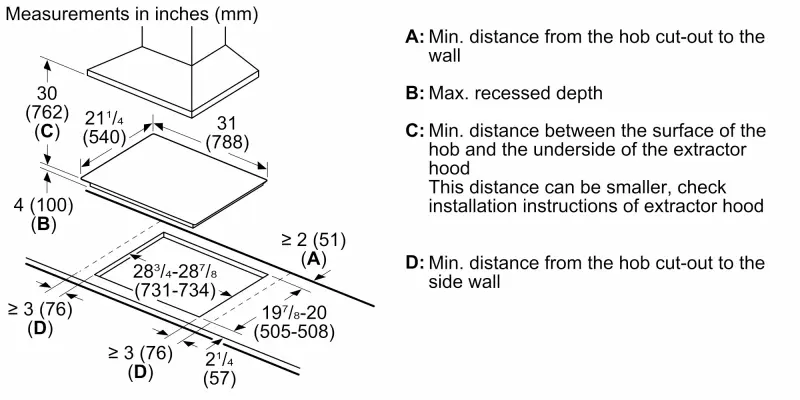

    Minimum distance from counter front (in) 2 1/4"
    Minimum distance from rear wall (in) 2"
    Cooking zone 1
    Dimension of 1st heating element (in) 7" ; 5"
    Location of 1st heating element front left
    Power of heating element (kW) 0.7 ; 1.7 kW
    Type of heating element Radiant heating
    Cooking zone 2
    Location of 2nd heating element center left
    Cooking zone 3
    Dimension of 3rd heating element (in) 7"
    Location of 3rd heating element back left
    Power of 3rd heating element (kW) 1.8 kW
    Type of 3rd heating element Radiant heating
    Cooking zone 4
    Location of 4th heating element middle back
    Cooking zone 5
    Dimension of 5th heating element (in) 6"
    Location of 5th heating element back right
    Power of 5th heating element (kW) 1.2 kW
    Type of 5th heating element Radiant heating
    Cooking zone 6
    Location of 6th heating element center right
    Cooking zone 7
    Dimension of 7th heating element (in) 9"
    Location of 7th heating element front right
    Power of 7th heating element (kW) 2.5 kW
    Type of 7th heating element Radiant heating
    Cooking zone 8
    Location of 8th heating element front middle / central
    Cooking zone 9
    Location of 9th heating element front centre/cent
    Safety
    Power on indicator
    Residual heat indicator Separate
    Main on/off switch
    Connection
    Frequency (Hz) 60 Hz
    Energy source Electric
    Watts (W) 7,200 W

    Product Downloads

    Installation Instruction Click here to download
    Installation Instruction Click here to download
    Installation instructions Click here to download
    Instruction manual Click here to download
    Product Spec Sheet Click here to download
    Supplemental Click here to download
    Supplemental Click here to download
    Supplemental Click here to download
